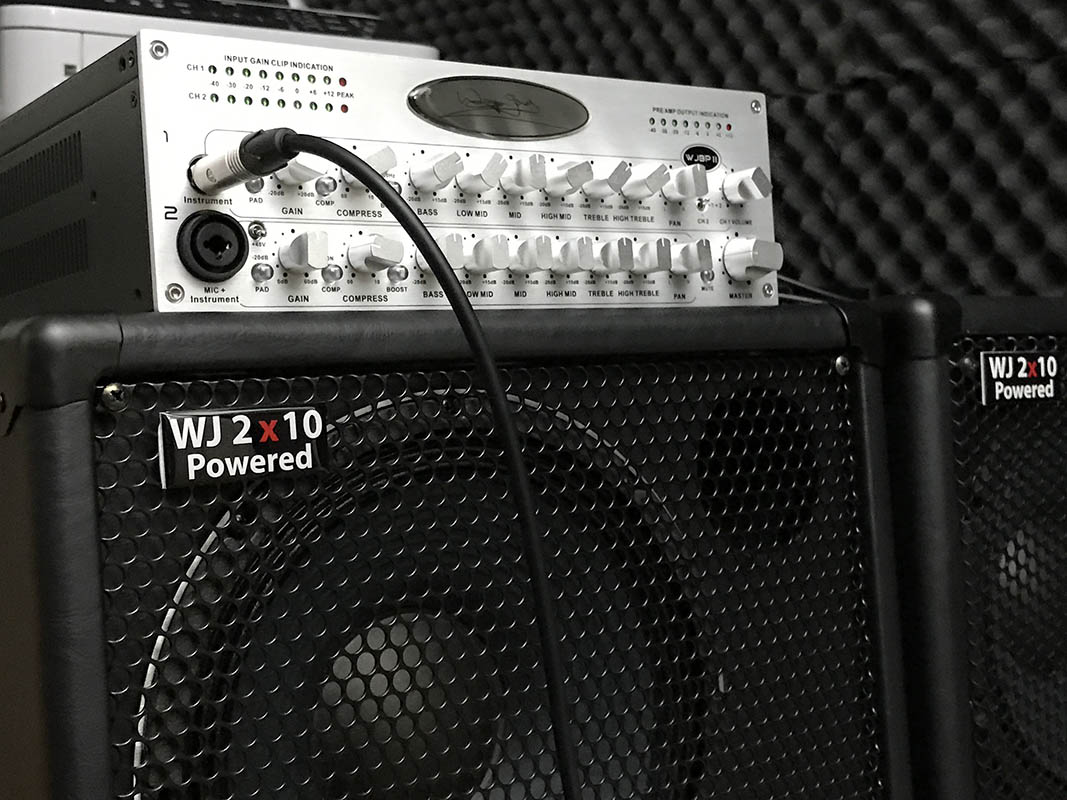

WJBPII Twin Channel Bass Pre-Amp



Click Images For Gallery View

Wayne Jones AUDIO WJBPII Twin Channel Bass Guitar Pre-Amp. 2 Independent channels that also can be used together. Stero/Mono Inputs. Phantom power option. 6 band EQ plus 30hZ boost





WJBPII TWIN CHANNEL BASS PRE-AMP, featuring the option of phantom power on the second channel.











Wayne Jones AUDIO, bass guitar powered bass cabinets, direct from manufacturer, 100% satisfaction guaranteed. Speakers for bass guitars.Introducing the all new WJBPII TWIN CHANNEL BASS PRE-AMP, featuring the option of phantom power on the second channel.

Listening to endorsees Scott Colley & André Berry I designed this new edition for the endorsee family. Scott needed one channel for his double bass pick up and a second channel for the phantom powered mic he uses on the bass. Andre needed extended treble frequencies. I also made a few of my own changes to the WJBPII.

The WJBPII is designed with a no compromise attitude in Cost, Quality, Components & Features just as are WJ High End High Powered Bass Cabinets.

FEATURES:

FRONT PANEL

  • 2 Independent channels that also can be used together
    Channel 1 – 1/4” stereo/mono input
    Channel 2 – Has the option of phantom power or just use it as a second channel
    2 XLR balanced Inputs
  • 2 Input gain level controls with -10dB pad & Input clip Indicators for both channels
  • Optical compressor with level
  • 6 band EQ plus 30hZ boost
  • Stereo pan control (for use when using 1 or 2 outputs to 1 or 2 WJ 1000 Watt Powered 2×10 cabs)
  • Channel selector Independent volume control of both channels
  • Master Stage volume Pre amp Output Indicator

REAR PANEL

  • Outside power supply to ensure studio quality noiseless operation, switchable 115/230V
  • DI Output – Stereo XLR balanced outputs out with Level control, pre or post EQ button & 1/4” unbalanced. Works in conjunction with the pan control
  • Stereo/Mono FX loop
  • Foot switch mutes all output for silent tuning
  • DI pre or post with level control
  • Ground Lift for DI
  • Aux in – 1/4” or mini jack
  • Headphone out with level control



Master Outs 2 balanced XLR (recommended) outs for connection to WJ powered cabinets or to separate power amps Balance control on from panel will affect these outputs.

Also a choice of 2 Unbalanced 1/4’ outputs for same function. (not recommended as output is lower)

All master outs can be used together as a pair or Individually with balance control set to the respective output

FX Send & Return – Stereo or mono with a blend balance control for wet or dry. “Set in Centre for correct  blend”.

Foot switch – Mutes all output

DI Output – Balanced XLR out with Level control & pre or post EQ button

Aux Input – Stereo input, mini jack & 1/4” Phono. You can use this to plug items such as iPad, iPhone backing tracks etc. to play along with.

Headphone With Volume Control – Plug in your headphones to practise with. You can use the WJBP by itself without plugging into a power amp.
