6.5" 2-Way Powered Carbon Fiber Studio Monitors 650 Watt (Each)

(Page Index)

**Wayne Jones Audio Studio Monitors + Sonarworks SoundID Reference**

Sonarworks SoundID Reference profile can now be stored directly within
Wayne Jones Audio Studio Monitors (read more)

Store your SoundID Reference for Multichannel room calibration profiles, including GAIN & DELAY compensation and LISTENING SPOT correction, into each Wayne Jones Audio Studio Monitor. From 2.1 up to 9.1.6 configurations.

New Model (November 2023) – Carbon Fiber Technology

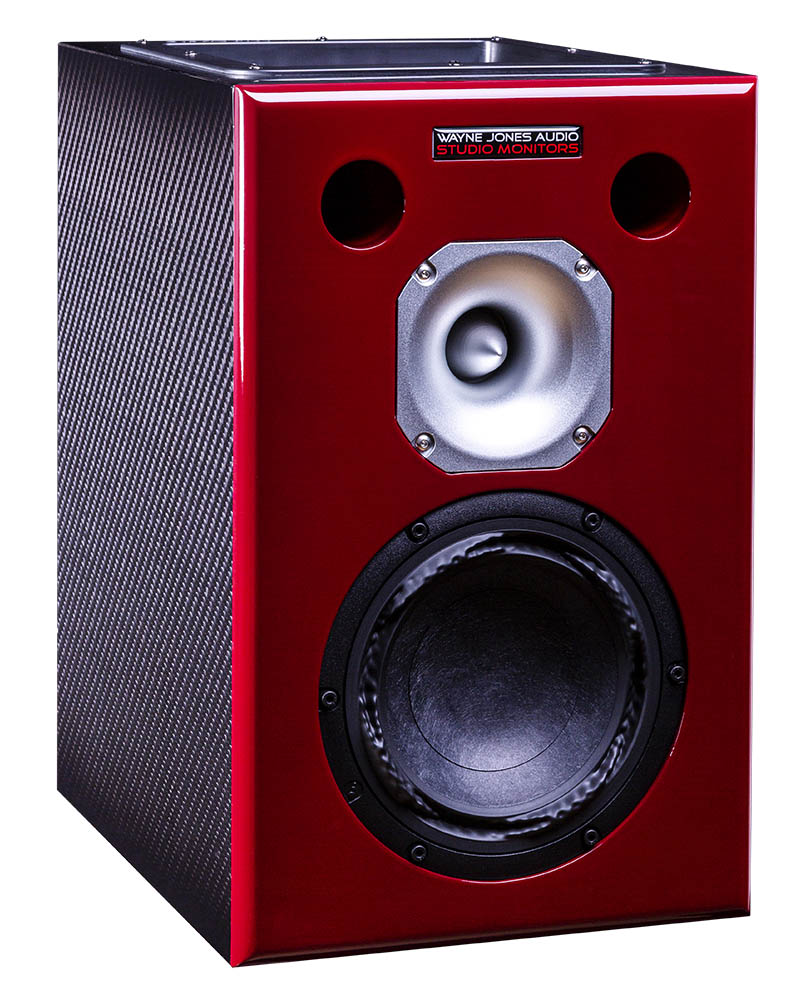

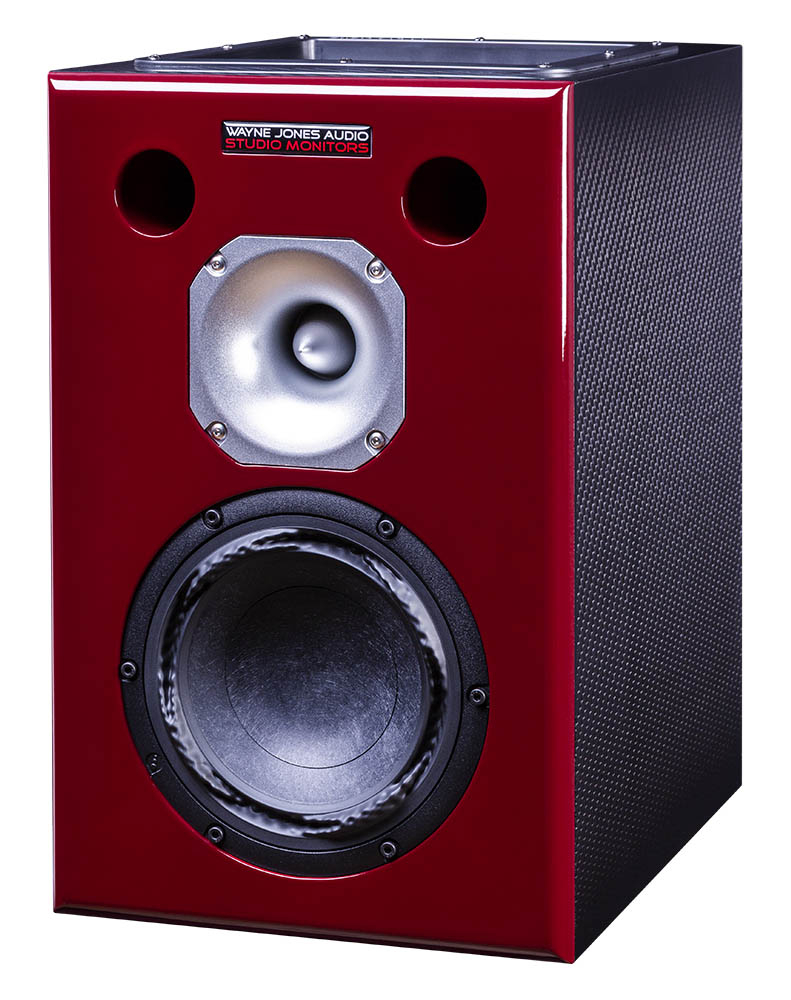

• New technology, new look, new features. Carbon fiber construction with 18mm MDF front and rear panels

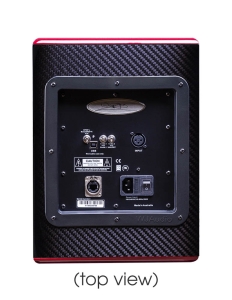

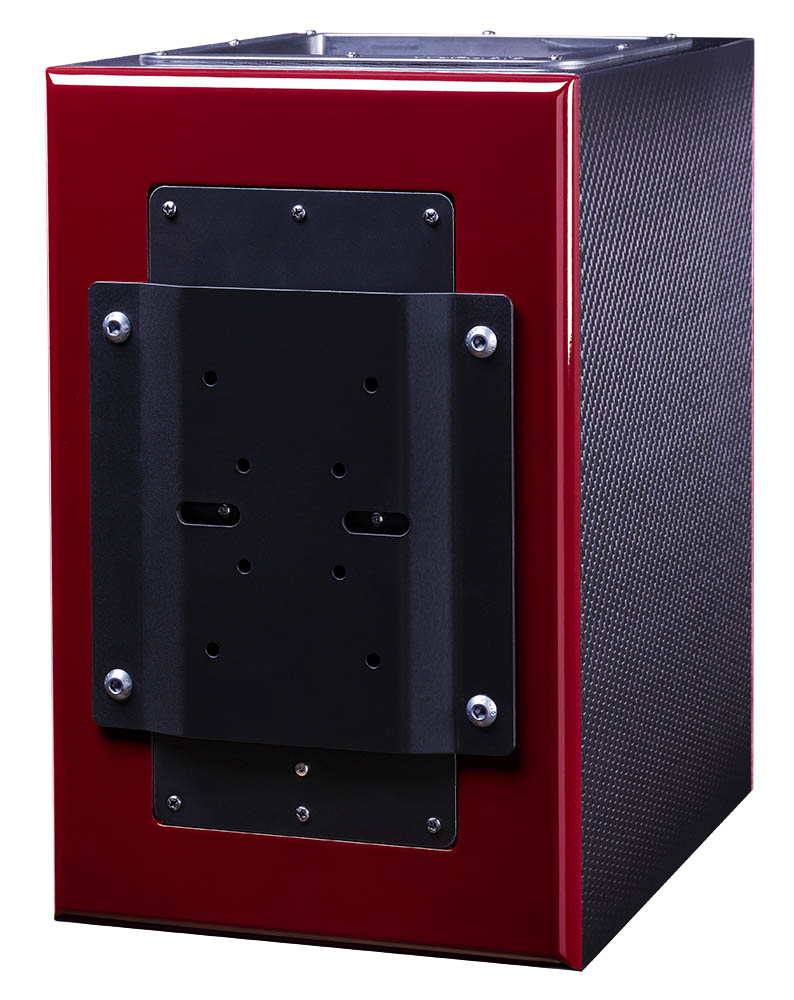

• Control panel now recessed on top of cabinet. This position allows optional mounting bracket to be fitted to rear.
• Tweeter has been rotated horizontally and moved closer to the 6.5" driver
• All models now incorporate an Ethernet connection for SoundID Reference calibration file uploads

Using Carbon fiber for the construction of the majority of cabinet panels provides a more consistent and even internal acoustic cabinet response. Makes for a smoother measurement curve when the initial cabinet measurements are taken. Improves the flat cabinet measurement result.

Ultra deep high gloss 2 Pak clear finish.

Weight advantages: A single WJA 1×6.5" 2 way Monitor is now approx. 3 kg lighter than previous MDF models. Now 10.7 kg previously 13.4 kg.

Product Introduction

Wayne Jones Audio 6.5" 2-Way Monitors – "When Size Really Matters"
Perfect size for Broadcast Vehicles & Home Studios

High powered, mid/near-field 2-way studio monitor. 6.5", long stroke, ultra-low distortion driver with incredible clarity, musical with unbelievably tight low end reproduction. Bullet-style machined aluminium tweeter with a 1.46” voice coil. State of the art D Class switch mode power amp, 192 K SHARC DSP.

For ultimate excellence in recording studios. Stunning Frequency Response, Incredible phase & time alignment. Undeniably Accurate, Faultless Frequency Reproduction, Incredible Depth, Clarity & Dimension.

Click Images For Gallery View

SoundID Reference From Sonarworks

SoundID Reference From Sonarworks With Microphone Included

The Wayne Jones Audio Studio Monitors are incredibly accurate in all areas. For potential room acoustic issues we bundle SoundID Reference with mic from Sonarworks measurement and correction program.

SoundID Reference from Sonarworks is for room acoustic issues and not a simple fix for lessor quality speakers. It always starts with the source and the Wayne Jones Audio Studio Monitors, with their incredible flat response, are significantly the most advanced source currently available. Combined with Sonarworks’ SoundID Reference measurement the ultimate perfection for any room is secured.

SoundID Reference from Sonarworks includes:

• SoundID Reference Measure – step-by-step guide
• XREF20 calibration microphone with individual calibration curve – the mic alongside SoundID Reference Measure guarantees maximum precision
• SoundID Reference Systemwide – Sonarworks SR applied to all audio output
• SoundID Reference Plugin – zero latency in your DAW
• Headphone profiles – See the list of supported models here:
  www.sonarworks.com/reference/headphones

www.sonarworks.com/reference

Wayne Jones Audio Studio Monitors in partnership with Sonarworks SoundID Reference

Industry Reviews – (Information Below For Previous Model)

Sound On Sound Magazine Review (Aug 2020):

“The Baby Red (6.5" 2-Way Powered) […] plays a remarkable trick of sounding huge”

“It has enormous authority and clarity and displays all the subjective qualities of a much larger monitor working well within its limits”

“Reverb tails, compression artifacts and imaging qualities
are all startlingly clear”

“The Baby Red is unique, and impossible not to love”

~ PHIL WARD ( All QUOTES FROM Sound On Sound Magazine review, August 2020 ►

A note from Wayne Jones Audio addressing review points:

Tweeter Orientation
The Baby Reds are optimised for time alignment at the 1.5 metre listening spot. They are designed for small studios and the exacting requirements of OB trucks, where close environments create different listening/eq responses when monitors are used on their side or standing upright.

Port Flaring
Non flared ports compress earlier, providing attack that is accurate & highly beneficial during mix judgements. Even to the point of feeling air movement from ports when assessing low frequency.

Wayne Jones Audio Studio Monitors now in Universal Music Studios South Africa & with Joseph And George Mothiba (REVOLUTION)

“Man these speakers should come with a warning! “Sound quality so good, you won’t be able to walk away from them!”” Read More ►

Our Conclusions

• Undeniably Accurate, Faultless Frequency Reproduction, Incredible Depth, Clarity & Dimension
• You will hear Compression & Reverb tails more accurately than you have never heard before
• A whole new level of Transients, Clarity & Distinction
• All this at high & low listening levels

Our first designs intentionally had no DSP. This ensured the system and all components were doing exactly what they should from the source itself. Some companies use DSP to make up for the lack of what the source can’t produce, you can hear that. It simply doesn’t sound right and is misleading.

With the addition of DSP we have fine-tuned the original high praised system to perfection.

Finally, as an engineer, producer or artist your mixes can now be “undeniably accurate” and your work “more enjoyable”. This will translate right down the line through to clients and end consumer.

Even when listening to recordings you know well, you will discover things you never knew existed until now.

The Wayne Jones Audio monitors, gives you a whole new listening experience, transporting you into the very essence of musical dimension.

Cabinet Specs

• Finish – Ultra deep high gloss 2 Pak clear finish
• Carbon fiber construction with 18mm MDF front and rear panels
• Colour – Red or Graphite
• Available in custom colours. Match your décor, order your preferred colour

Cabinet Specs – for each cabinet:

• Power: 650 Watts RMS powered
• Channel 1: Bass-Mid – 500 Watts RMS @ 4 ohms
• Channel 2: Tweeter – 150 Watts RMS @ 8ohms
• Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
• Power Amp frequency: 20 Hz – 20 kHz
• Cabinet tuning: 35 Hz to 20 kHz
• Cabinet response: Half loudness Graphed down to 28Hz
• HPF switch at 30 Hz
• Drivers: Bass-Mid 6.5 inch, long stroke, ultra low distortion with incredible clarity, musical with tight bottom end
• Magnet: Ferrite
• Tweeter: Machined Aluminium 1.46" Voice coil, Kapton
• Crossover point: 2.5 kHz
• Control plate: Black Steel
• Universal Mains Power in: Standard IEC

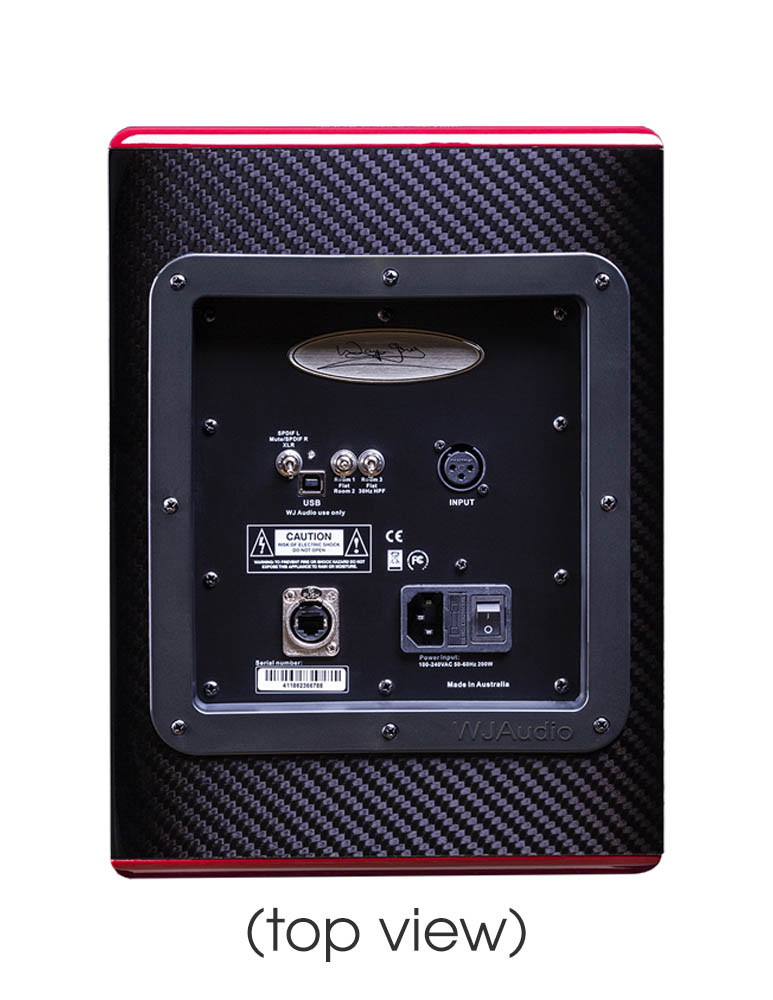

DSP & Control Plate Features

• Inputs: XLR Analogue Balanced
• DSP – 192K SHARC processing
• USB connector for WJ Audio use only. Used for software updates
• Ethernet connection for SoundID Reference calibration file uploads
• 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
  • Inputs: XLR Analogue (center position mutes monitor)
  • Room 1: Inactive. For future development /
    Room 2: SoundID Reference calibration (preloaded with test profile)
  • Room 3: Inactive. For future development /
    30Hz HPF
• LED on Control Panel for power operation

Shipping Dimensions & Weights:
Shipped as a pair on a 1/2 size pallet (included in shipping weight & dimensions)
Carton – Double thickness cartons lined with high density die cast foam for ultimate protection.
W 60 x H 50 x D80 cm = Total 190cm (23.6 x 19.7 x 31.5 in)
29 kg / 64 lbs

Ordering

As these are custom & hand made in Australia. If not in stock there could be a wait time of up to 8 weeks from time of order. We do carry minimal stock.

Payment

50% required at time of order with balance payable when ready to ship

International shipping is by DHL Express

Shipping & local duties & taxes are the customers responsibility

Warranty is 3 year limited on all parts & Labour
