WJ 2×10 Passive Bass Cabinet

Wayne Jones AUDIO bass guitar speaker cabinets sale

Click Images For Gallery View

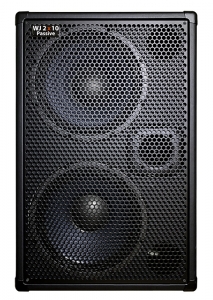

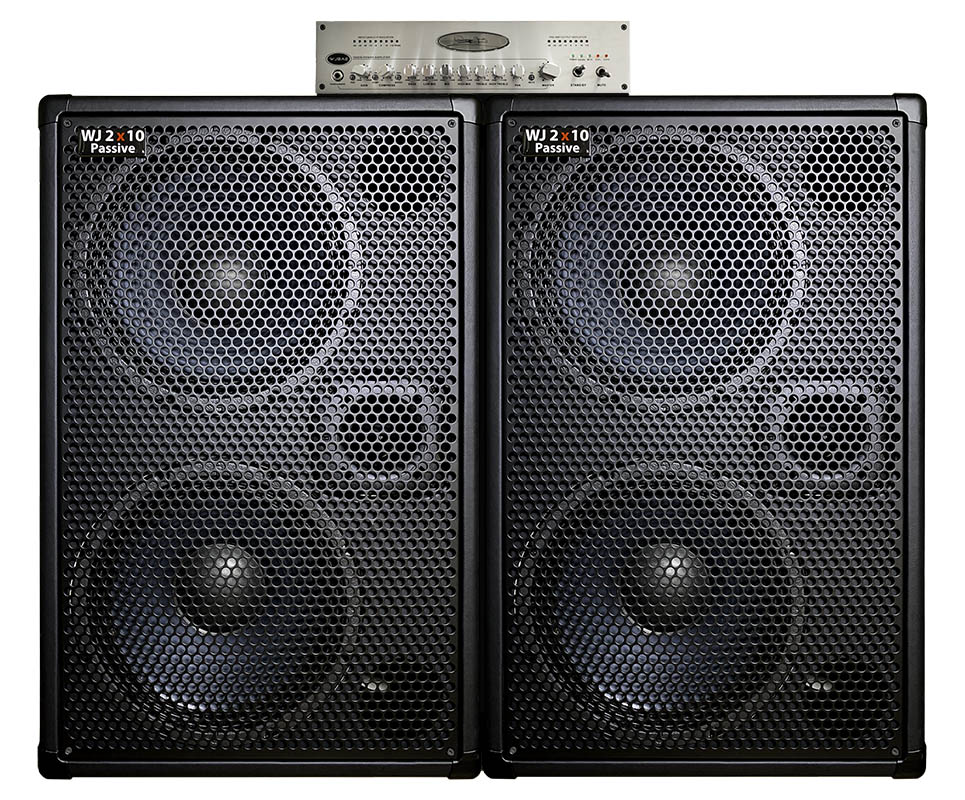

WJ 700 Watt Passive 2x10 Bass Cabinet - 8 Ohms, Compact, Hi End, Crystal Clear, Full Range 2×10 Bass Cabinet (40 Hz – 20 KHz)

WJ 700 Watt Passive 2x10 Bass Cabinet - 8 Ohms, Compact, Hi End, Crystal Clear, Full Range 2×10 Bass Cabinet (40 Hz – 20 KHz)

WJ 700 Watt Passive 2x10 Bass Cabinet - 8 Ohms, Compact, Hi End, Crystal Clear, Full Range 2×10 Bass Cabinet (40 Hz – 20 KHz)

Wayne Jones AUDIO, bass guitar powered bass cabinets, direct from manufacturer, 100% satisfaction guaranteed. Speakers for bass guitars.The WJ 2×10 Passive 700 Watt Bass Cabinet

Now you can have the same incredible cabinet sound using the head of your choice.

Building on the range of awarded and highly acclaimed powered cabinets.

700 Watt @8 Ohms, Compact, High End, Crystal Clear, Full Range 2×10 Bass Cabinet (40 Hz – 20 KHz & does the job of a 4×10)

The custom made WJ drivers themselves are 40 Hz to 4.5 kHz & will extend down to 28 Hz, Kevlar impregnated cones with huge magnets.

  • Clean true mids with no cloudy sound like other cabs.
  • True studio sound for your bass but with the added live sound reinforcement.
  • Light & portable, the cabinet is made from lightweight poplar ply which is internally braced & is finished with a lush slightly thicker black carpet than most manufactures use.
  • I still use the same 10” driver design that was in my previous model (if it aint broke don’t fix it) with air dried Kevlar Impregnated cones, a 70mm voice coil, massive ferrite magnets (in preference to Neo).
  • All bass cabinets in the new range now have JBL tweeters.
  • Standard plastic interlocking corners
  • 1.6mm perforated powder coated front & rear grills
  • Foam padded covers with a special cut out to protect the control panel come with all cabs at no extra cost.

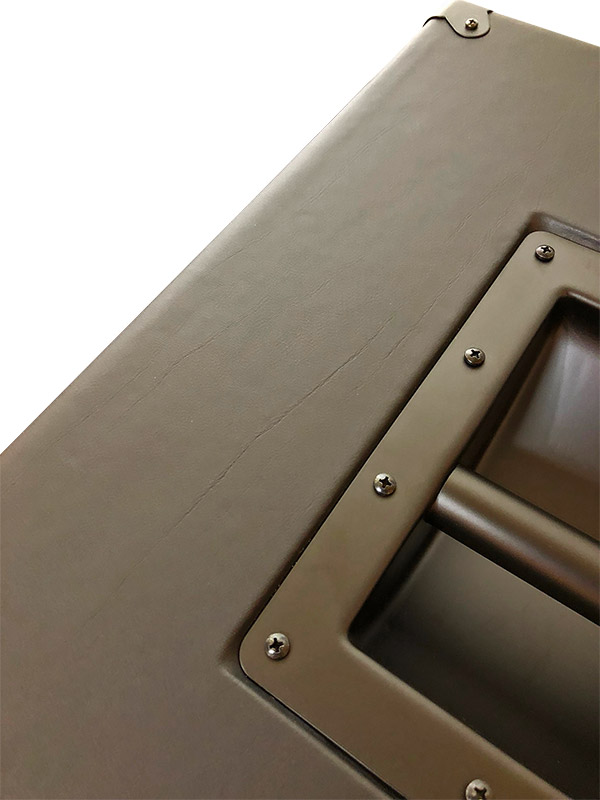

  • Bar handles for carrying

Attenuators

  • Set the mid around 3 o’clock & the high approx.  12 O’clock.

Dimensions

  • Height: 65cm   Width: 41.5cm   Depth: 52cm (26.6 x 16.3 x 20.4 In)
  • Weight: 29 kg (64 Lbs)




Cabinet Specs

  • Cabinet tuning – 40 Hz to 20KHz (speakers will actually reproduce below 30Hz thus the need for the HPF)
  • Drivers – 2 custom made Wayne Jones 10” drivers with Aluminium cast frames, Kevlar impregnated cones with specially formulated Eucalyptus pulp
  • Voice coil – 70mm
  • Magnet – Massive Ferrite
  • Individual driver specs. 40 Hz to 4.5 KHz
  • Tweeter –  JBL, 1.75” Voice coil
  • Crossover point 3.5Khz
  • Control plate-  Brushed Stainless Steel

Attenuators

  • High -12Db cut
  • Mid  -12Db cut @ 300Hz to 600 Hz range

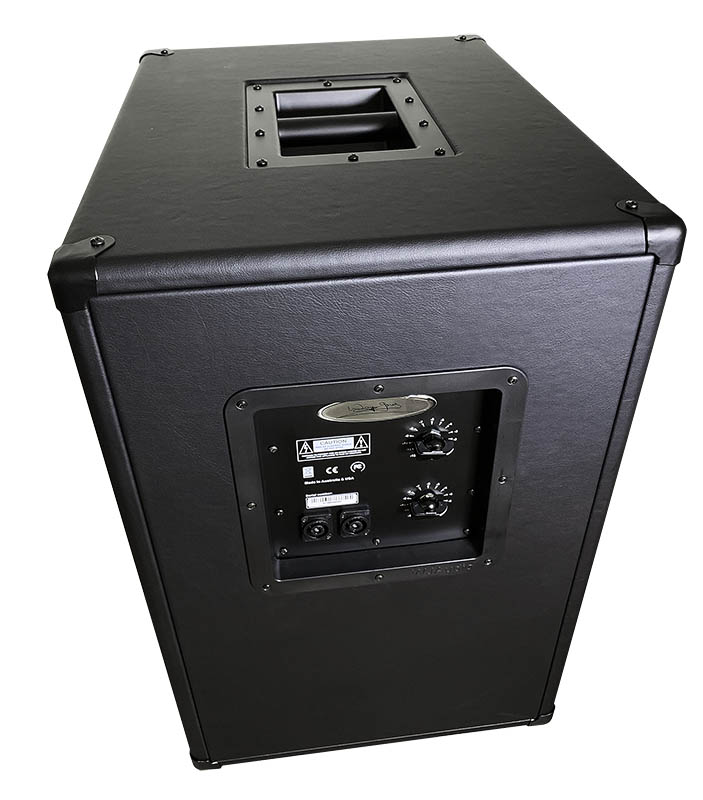

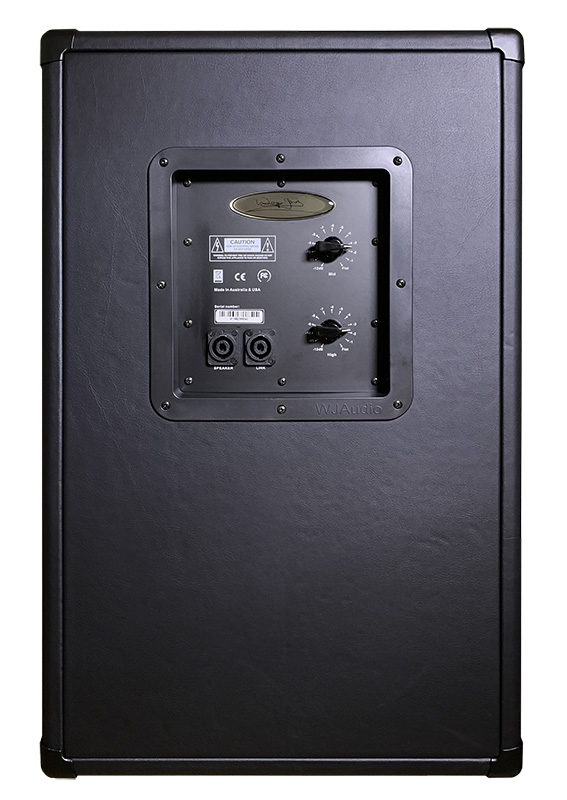

2×10 Passive Rear View
"WJ 700 Watt Passive 2x10 Bass Cabinet - 8 Ohms, Compact, Hi End, Crystal Clear, Full Range 2×10 Bass Cabinet (40 Hz – 20 KHz)

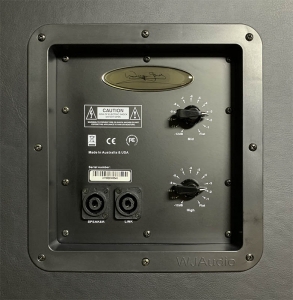

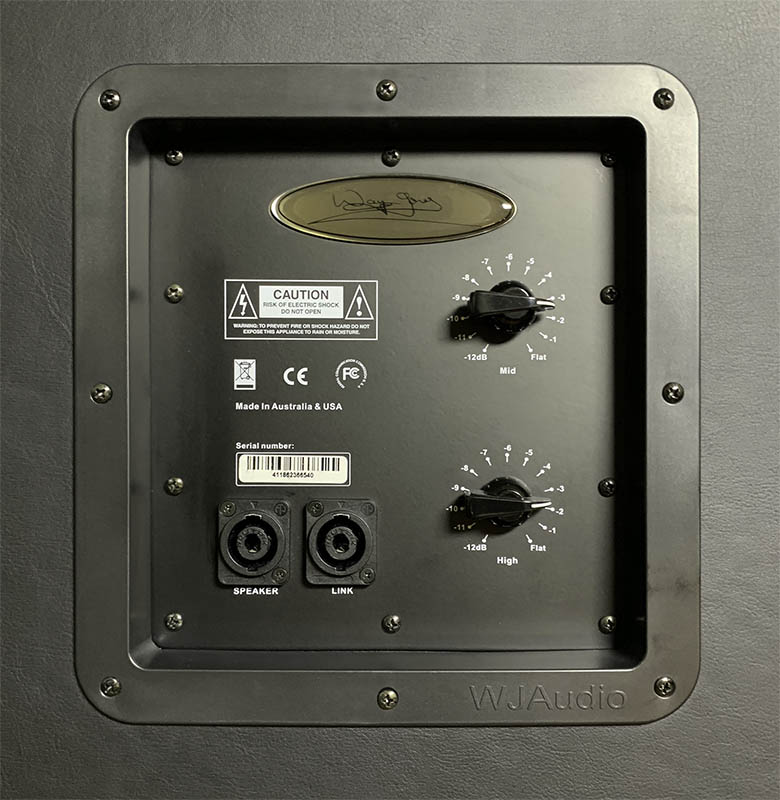

Control Plate
WJ 700 Watt Passive 2x10 Bass Cabinet - 8 Ohms, Compact, Hi End, Crystal Clear, Full Range 2×10 Bass Cabinet (40 Hz – 20 KHz)
