WJ 1×10 Stereo/Mono Bass Cabinets

Wayne Jones Audio 2023 bass cabinets now feature DSP input and crossover

Click Images For Gallery View

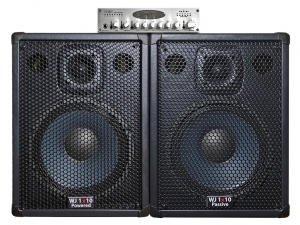

Wayne Jones Audio - 1000 Watt 1x10 Stereo/Mono Bass Cabinets with WJBP pre-amp

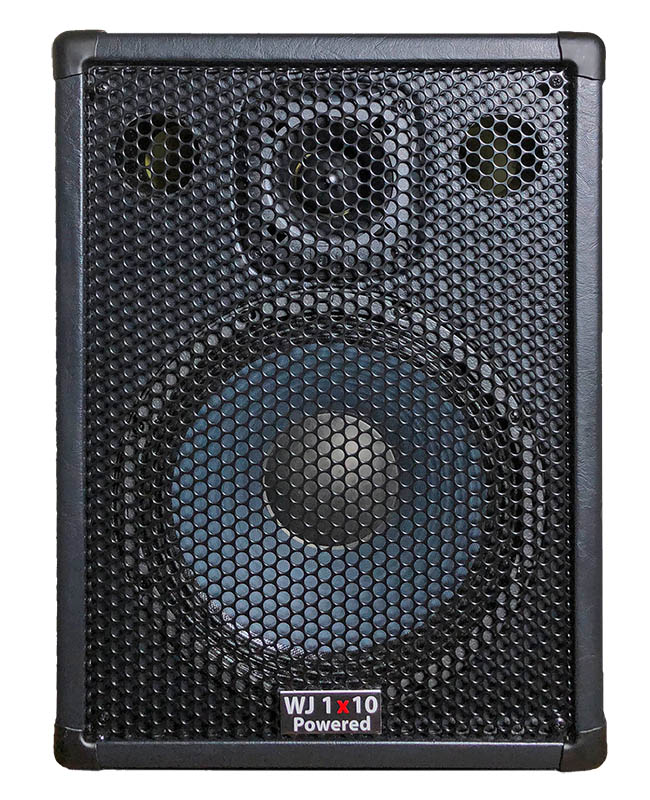

Active Bass Cabinet
Wayne Jones Audio - 1000 Watt 1x10 Powered Bass Cabinet

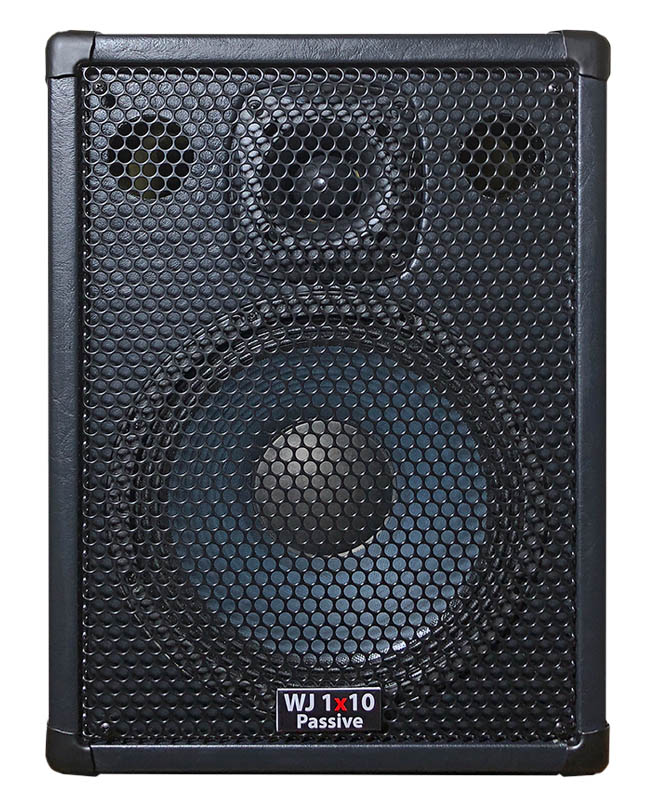

Passive Bass Cabinet
Wayne Jones Audio - 500 Watt 1x10 Passive Guitar Speaker

Stock Sold Out – Now Made to Order

Wayne Jones AUDIO, bass guitar powered bass cabinets, direct from manufacturer, 100% satisfaction guaranteed. Speakers for bass guitars.The WJ 1×10’s

Are Extremely light weight (no more back trouble) great for small rooms. 500 Watt a side, 4 ohm cabinets that are used as a pair in stereo or parallel mono.

1×10 Cabinets now Made to Order only.

These will blow you away. Ideal for smaller gigs.

They are so light but sound so full & clear, 40 Hz- 20 KHz
You can also use the powered one by itself as a 500 Watt cabinet. It will only use one side of the power amp which operates totally separate from the other.
Besides all that you can pop them up on stands & use them for monitors in your home studio.

Digital Dsp For Powered Bass Cabinets

Wayne Jones Audio powered bass cabinets now feature DSP input and crossover.

Using SoundID Reference measure your room acoustics and store the calibrated result directly within the cabinet. Access when required via a switch on control panel. This is ideal for recording studios when there is a preference for recording cabinets with microphones, residency venues and frequented rehearsal studios.

The DSP technology used has been developed with our award winning range of Wayne Jones Audio Studio Monitors in conjunction with SoundID Reference from Sonarworks.

loading

Cabinet Specs: For a pair

  • Power – 1000 watts. 500 Watts per side into 4 Ohms per side
  • Power Amp – D Class switch mode stereo power amp with heat sink plate mounted into the rear of one cabinet.
  • Power Amp frequency – 20 Hz – 20 KHz
  • High Pass Filter – 30Hz roll off
  • Cabinet tuning – 40 Hz to 20KHz (speakers will reproduce below 30Hz so thus the need for the HPF)
  • Drivers – 2 custom made Wayne Jones 10” drivers with Aluminium cast frames, specially formulated cone pulp, Kevlar impregnated cones.
  • Voice coil – 3”
  • Magnet – Massive Ferrite
  • Tweeter –  JBL, 1.75” Voice coil
  • Crossover point – 3.5KHz

Control plate – Brushed Stainless Steel

  • Mains Power in- IEC
  • 2 XLR balanced Inputs with parallel mono (link) or stereo selection switch.
  • LED readout for thermal & amp; clip Indication.
  • Attenuators
  • High -12Db cut
  • Mid attenuator -12Db cut @ 300Hz to 600 Hz range

Dimensions

  • Height: 47cm Width: 35cm Depth: 52cm
  • Weight
  • Active   18.2kg
  • Passive 17.2 kg

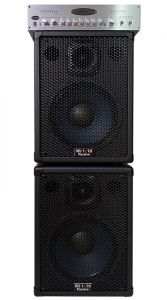

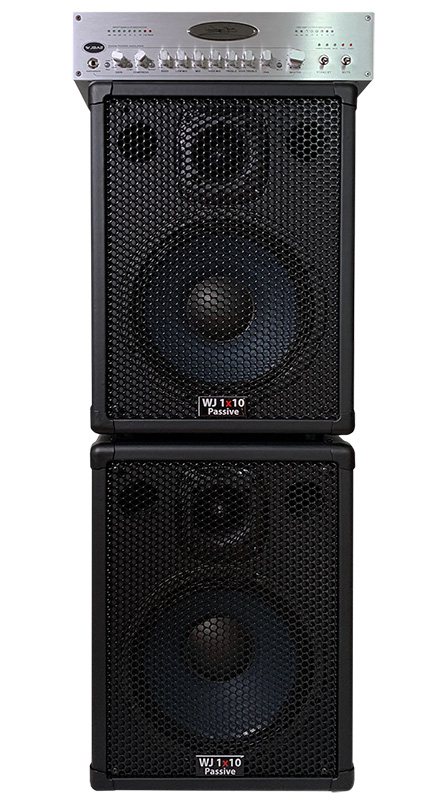

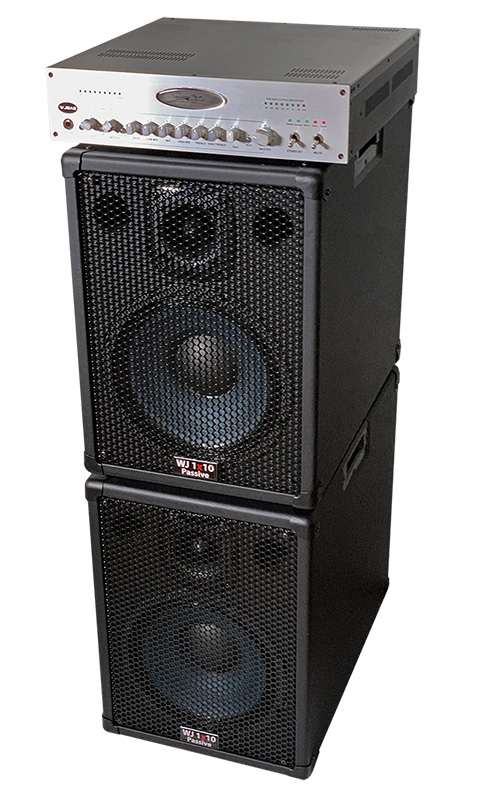

WJ 1×10 Passive Cabinets also can be paired with the
WJBA2 1000 Watt Bass Guitar Amplifier
WJ 1×10 bass guitar passive cabinets with  WJBA2 1000 Watt Bass Guitar Amplifier Drew Dedman, from Bass Workshop in Melbourne Australia, demonstrating WJ 1×10 bass guitar passive cabinets with the WJBA2 1000 Watt Bass Guitar Amplifier WJ 1×10 bass guitar passive cabinets with  WJBA2 1000 Watt Bass Guitar Amplifier
Product Videos
Discussion about the 1000 Watt WJ 1×10 Powered Stereo System Demonstrating the 1000 Watt WJ 1×10 Powered Stereo Bass Cabinet System Features of the WJ Powered Bass Cabinet range
Related Product Videos
The WJBPII Bass Guitar Twin Channel Pre-Amp & WJ Powered Bass Cabinets The WJBP Bass Guitar Pre-Amp & WJ Powered Bass Cabinets

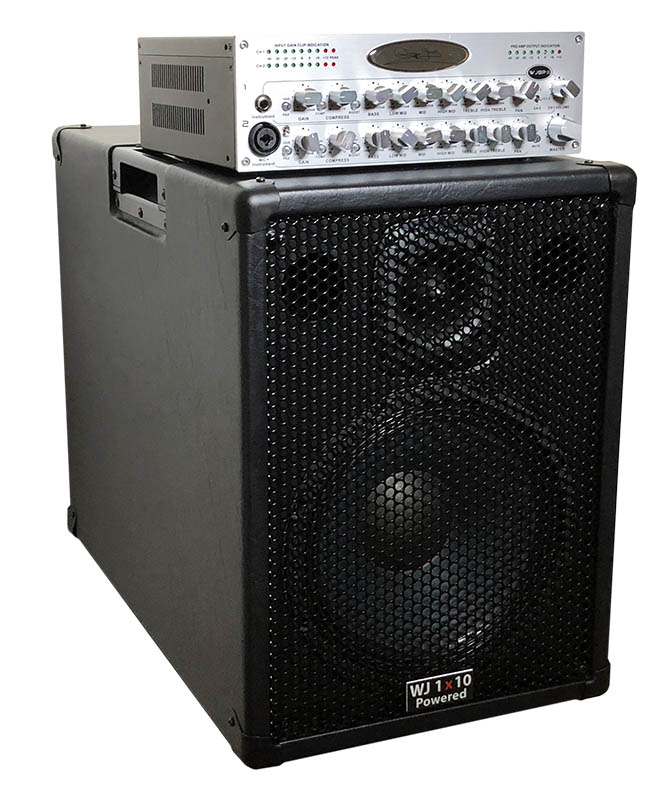

With WJBPII Twin Channel Pre-Amp
Wayne Jones Audio - 5000 Watt 1x10 Powered Bass Guitar Speaker Cabinet with WJBPII twin channel bass guitar pre-amp

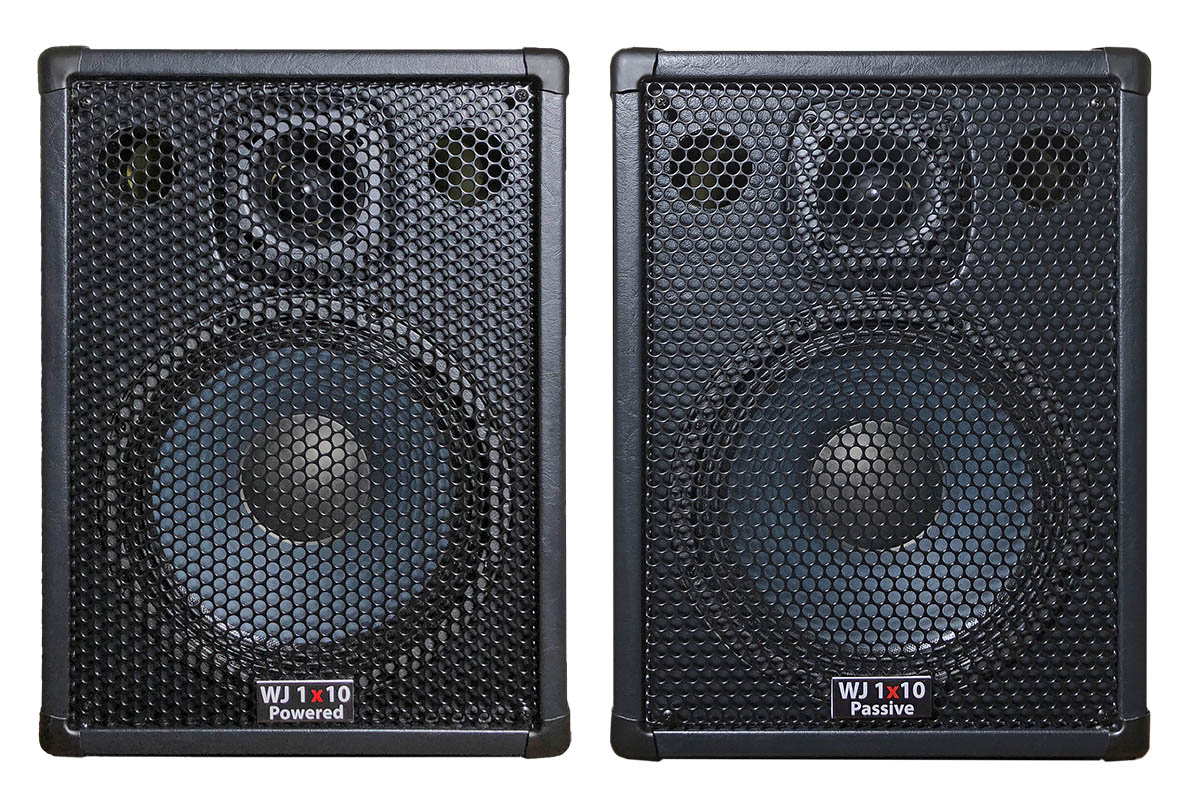

1×10 Pair
Wayne Jones Audio - 1000 Watt 1x10 Powerred Stereo/Mono Guitar Amp / Cabinets

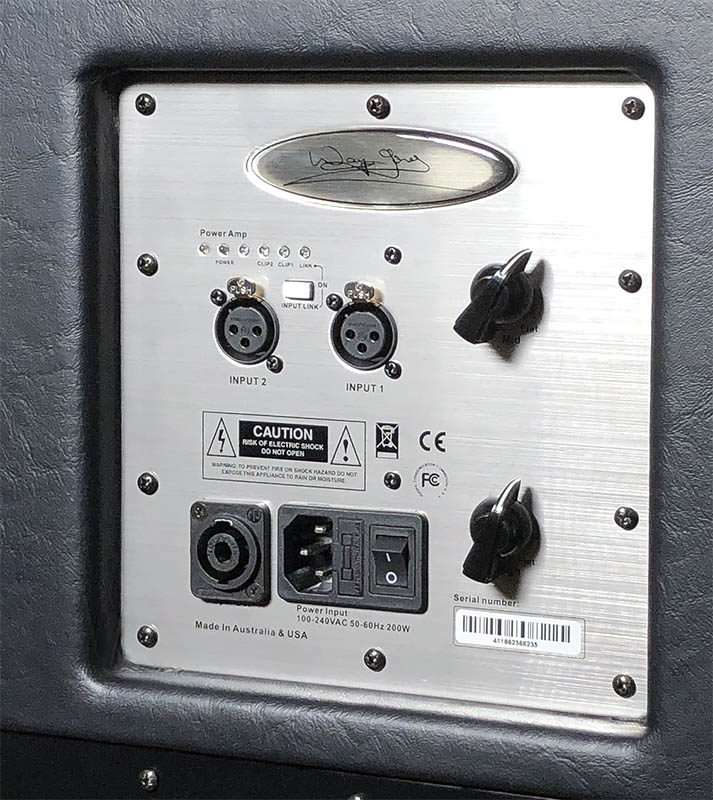

1×10 Control Panel
Wayne Jones Audio - 1000 Watt 1x10 Stereo/Mono Guitar Speaker Cabinets (500 watts per side) - Control Panel

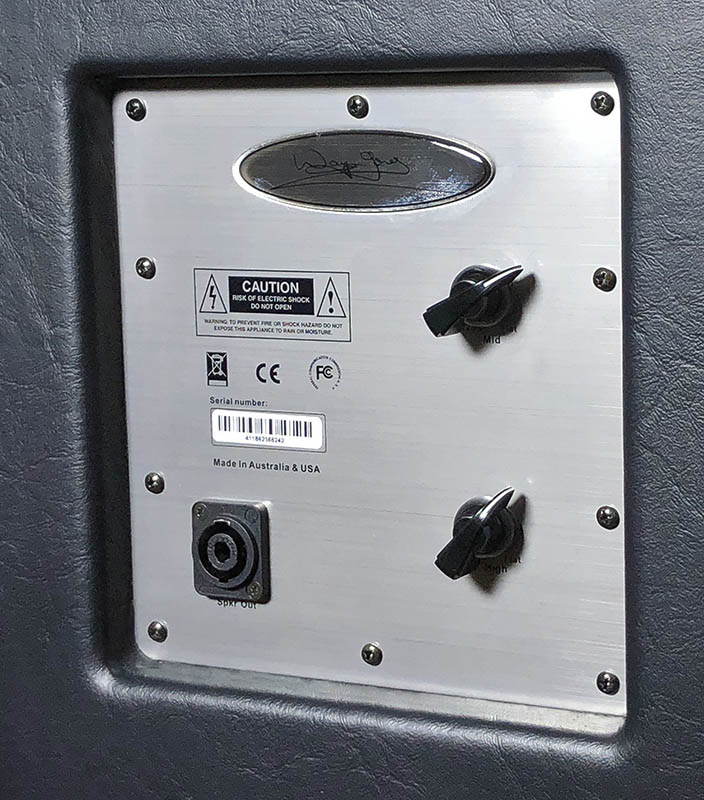

1×10 Passive Control Panel
